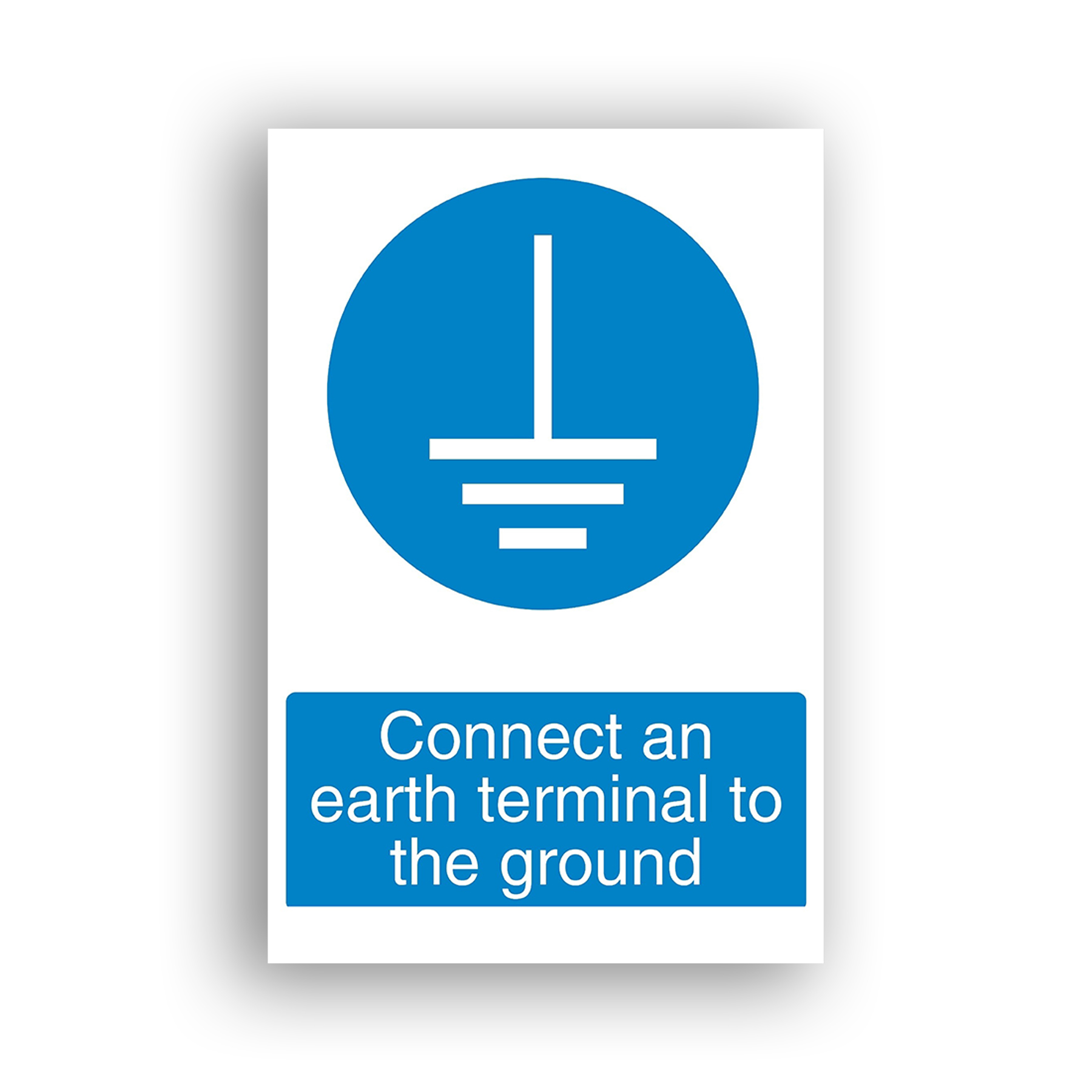

Connect an Earth Terminal to the Ground Sign | Mandatory Safety Sign

Description

This sign mandates the connection of an earth terminal to ground, a critical step in preventing electric shock, equipment damage, and fire from stray fault currents.

Also commonly referred to as a Earth This Equipment Before Use sign.

Product at a Glance
Product detail: Connect an Earth Terminal to the Ground
Sign type: Mandatory Sign safety sign
Colour: Blue and white
Orientation: Portrait
Materials: Aluminium Composite, Corriboard (Correx), Self-Adhesive Vinyl
Sizes: 100mm x 150mm, 200mm x 300mm, 400mm x 600mm, 600mm x 900mm
Suitable locations: electrical installation panels, industrial machinery enclosures, generator and transformer stations, electronics assembly and testing areas
Delivery: Nationwide Ireland delivery
SKU: VGAM008

Where Should a Connect an Earth Terminal to the Ground Sign Be Used?
electrical installation panels, industrial machinery enclosures, generator and transformer stations, electronics assembly and testing areas

Which Material Should I Choose?
Aluminium Composite: Best for permanent indoor or outdoor signage and locations requiring a rigid, durable sign.
Correx: A lightweight, economical option for temporary or shorter-term signage.
Self-Adhesive Vinyl: Best for application directly to smooth, clean surfaces such as doors, panels and equipment housings.

Why this sign: This sign should be posted wherever electrical equipment, panels, or machinery require a protective earth connection before operation or maintenance. It addresses the risk of electric shock and damage caused by ungrounded equipment accumulating dangerous fault voltages. It is particularly important in industrial, construction, and laboratory environments where personnel work with high-voltage or sensitive electrical systems.

Compliance note: In Ireland, employers must provide appropriate safety signage where hazards cannot be avoided or adequately reduced by other measures, based on the workplace risk assessment, under the Safety, Health and Welfare at Work (General Application) Regulations 2007. This sign is suitable for use as part of a workplace safety-signage system where identified by that risk assessment.

Frequently Asked Questions

What does a Connect an Earth Terminal to the Ground sign mean?
A Connect an Earth Terminal to the Ground sign instructs workers and operators to ensure the equipment’s earth terminal is properly connected to ground before use, as a mandatory electrical safety measure to prevent shock and equipment faults.

Where should a Connect an Earth Terminal to the Ground sign be displayed?
Place the sign at or near electrical installation panels, industrial machinery enclosures, or wherever the relevant action is required.

Is a Connect an Earth Terminal to the Ground sign a mandatory sign safety sign?
Yes. It uses the blue and white mandatory sign-format design. In Ireland, employers must provide appropriate safety signage where hazards cannot be avoided or adequately reduced by other measures, based on the workplace risk assessment.

What is the difference between “Connect an Earth Terminal to the Ground” and “Earth This Equipment Before Use”?
They communicate the same instruction. “Earth This Equipment Before Use” is also commonly used for this type of sign.

Which material should I choose?
See the material guide above — Aluminium Composite for permanent/outdoor use, Correx for temporary signage, and Self-Adhesive Vinyl for direct application to smooth surfaces.

Can this sign be used outdoors?
Aluminium Composite and Self-Adhesive Vinyl are suitable for outdoor use. Correx is best suited to indoor or short-term outdoor use, as extended exposure to the elements can affect its lifespan.

What sizes are available?
Available in 100mm x 150mm, 200mm x 300mm, 400mm x 600mm, 600mm x 900mm.
